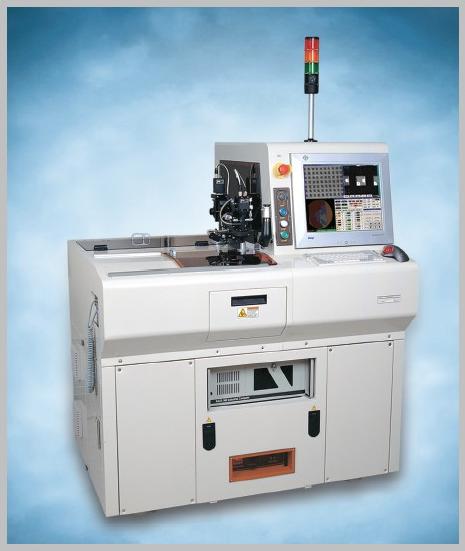

LED DIE SORTING SYSTEM
|
|
|
|
|
![LED DIE SORTING SYSTEM](http://image.ec21.com/image/uptowns/koimg_GC00055166_CA00055168/LED_DIE_SORTING_SYSTEM.jpg)
|
Click to enlarge image |
High Speed : 290 ms cycle time
◆ High Accuracy : Positioning (± 30 ㎛), Θ (± 3˚)
◆ Direct Driven Motor Equipped (Patent)
◆ Multi Bin Blocks (upto 24 Bin Blocks)
◆ CE Certificated
▶Outline of Equipment
The JCS-6300 is a fully automatic die sorting system for various kinds of LED’s. This JCS-6300 picks up the LED chips on the wafer by a collet and places the LED chips on each classified rank blue tape according to the binning data measured/tested by a prober.
▶Outline of Equipment
• Cycle Time : 0.29 second (one bin block movement only)
• Output Positioning Accuracy : ± 30 ㎛
• Output Θ Accuracy : ± 3˚
• Dimension : 1300(L) X 1000(W) X 1500(H)mm
▶Specification
• Tool Head System
-. High Speed Direct Driven Motor
(Semi-Permanent Life Time)
-. Missing Die Detection by Air Flow Sensor
-. Unclogging Collet by Air Blowing System
• Wafer System
-. Fully Automatic X-Y- Θ Alignment
-. Θ Rotation 360˚
• Vision System (2 camera)
-. Automatic X-Y- Θ Alignment
-. Surface Inspection for Broken and Double die
-. Max. Chip Position Allowance : 50% of Die size
-. Max. Chip Θ Allowance : ± 15˚
• Bin Block System
-. Multi Bin Blocks : 8 Bin Blocks
(Optional 24 Bin Blocks)
• Touch Panel System
-. Wafer Mapping Display
-. Binning Display
-. Vision Check Display
-. Simple Operation Touch Screen
▶Option
• Bar Cord Reader for Wafer ID
• Acquiring Mapping file from Host PC by Network
• Label Printer for Output Data
• Vaccum Pump(20 liter)
|
|
